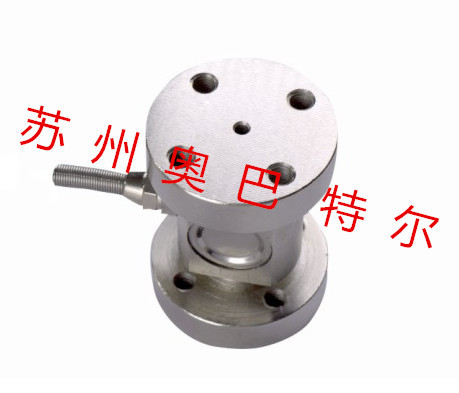

LSZ-A02D柱式稱重傳感器
產品特點 | Feature
柱式稱重傳感器
優質不銹鋼材質
安裝簡便、快捷，穩定可靠
適用于各種試驗機，配料秤、吊鉤秤,插拔力試驗機 ，按鈕測試儀和各類秤等。
量程 | Capacities
50kg,100kg,200kg,500kg,1t,2t,3t.
技術參數 | Specification
Rated Output | 額定輸出 | 1.0~1.5mV/V±1% |
Zero Balance | 零點平衡 | ±1% of rated output |
Creep After 30 Minutes | 蠕變 | ±0.05% of rated output |
Nonlinearity | 非線性 | ±0.3% of rated output |
Hysteresis | 滯后 | ±0.1% of rated output |
Repeatability | 重復性 | ±0.3% of rated output |
Temp.effect onoutput | 靈敏度溫漂 | ≤0.05% of applied output/℃ |
Temp. Effect on zero | 零點溫漂 | ≤0.05% of rated output/℃ |
Safe temp. Range | 可用溫度范圍 | -10℃to+70℃ |
Temp.Compensated | 溫度補償范圍 | -10℃to+30℃ |
Safe Overload | 安全載荷 | 150% |
Input Impedance | 輸入阻抗 | 387Ω±20Ω |
Output Impedance | 輸出阻抗 | 350Ω±5Ω |
Insulation Resistance | 絕緣阻抗 | ≥5000MΩ(50V DC) |
Rated Excitation | *激勵電壓 | 5V DC/AC |
Maximum Excitation | zui大工作電壓 | 10V DC/AC |
Protection Class | 防護等級 | IP67 |
Construction | 電線 | 2m |
type | 型號說明 | 型號+‚量程+ƒ非標功能F(無非標則不需填寫) 如：LSZ-A02D/3kg |
Cable Color Code | 導線顏色 | Red(+E)Black(-E)Green(+S)White(-S) |
