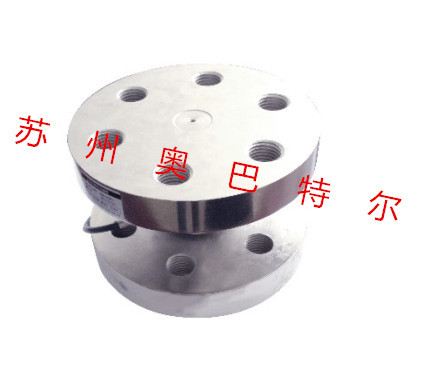

LSZ-A09柱式稱重傳感器
產品特點 | Feature
柱式傳感器
優質合金鋼材質
安裝方便、動態性能好、具有較強的自動調心功能，焊接密封、防護等級達到IP65
適用于汽車衡、動態軌道衡、大噸位料秤等衡器
量程 | Capacities
1t,3t,5t,10t,15t,20t,25t,30t,40t,50t,100t,200t
技術參數 | Specification
Rated Output | 額定輸出 | 2.0mv/v±1% |
Zero Balance | 零點平衡 | ±1% of rated output |
Creep After 30 Minutes | 蠕變 | ±0.03% of rated output |
Nonlinearity | 非線性 | ±0.03% of rated output |
Hysteresis | 滯后 | ±0.03% of rated output |
Repeatability | 重復性 | ±0.03% of rated output |
Temp.effect onoutput | 靈敏度溫漂 | ≤0.002% of applied output/℃ |
Temp. Effect on zero | 零點溫漂 | ≤0.002% of rated output/℃ |
Safe temp. Range | 可用溫度范圍 | -10℃ to+70℃ |
Temp.Compensated | 溫度補償范圍 | -10℃ to+40℃ |
Safe Overload | 安全載荷 | 150% |
Input Impedance | 輸入阻抗 | 387 Ω±20Ω |
Output Impedance | 輸出阻抗 | 350 Ω±5Ω |
Insulation Resistance | 絕緣阻抗 | ≥5000MΩ(50V DC) |
Rated Excitation | *激勵電壓 | 10V DC/AC |
Protection Class | 防護等級 | IP67 |
Construction | 電線 | 0-15t(3m) 35-100t(12m) |
type | 型號說明 | 型號+‚量程+ƒ非標功能F(無非標則不需填寫) 如：LSZ-A09/200kg |
